In Stock

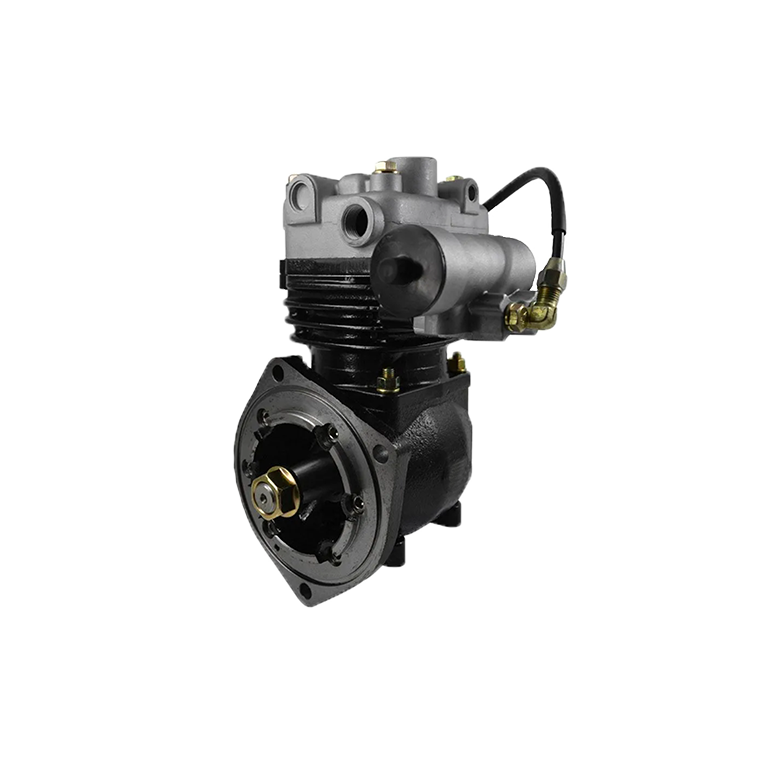

704.01.1000 - Compressor (Single Cylinder)
w/o gear
KNORR-BREMSE
Used In;
-
30 days easy returns
-
Order yours before 2.30pm for same day dispatch
6.90 / 7.90 / 7.100 / 7.110 / 8.100 / 8.130 / 8.140 / 11.130 / 11.140 / 11.160 / 12.140 / 14.140 / 14.150 / 14.170 / 14.200 / 16.180 / 16.200 / 16.210
Technical Specifications
| Cylinder Bore | Ø88 |
| Stroke | 37 |
| Swept Volume | 225 |
| Air Inlet Port Size | 1/2"-14 UNF |
| Air Delivery Port Size | 1/2"-14 UNF |
| Number of Cylinders | 1 |
| Through Drive | YES |
| Unloader Port Size | - |
| Water Or Air Cooled | W |
| Water Inlet Port Size | 1/2"-14 NPT |
| Water Delivery Port Size | 1/2"-14 NPT |
| Water Cooled Valve Plate | YES |
| Cylinder Bore | Ø88 |
| Stroke | 37 |
| Swept Volume | 225 |
| Air Inlet Port Size | 1/2"-14UNF |
| Air Delivery Port Size | 1/2"-14UNF |
| Number of Cylinders | 1 |
| Through Drive | YES |
| Unloader Port Size | - |
| Water Or Air Cooled | W |
| Water Inlet Port Size | 1/2"-14NPT |
| Water Delivery Port Size | 1/2"-14NPT |
| Water Cooled Valve Plate | YES |
